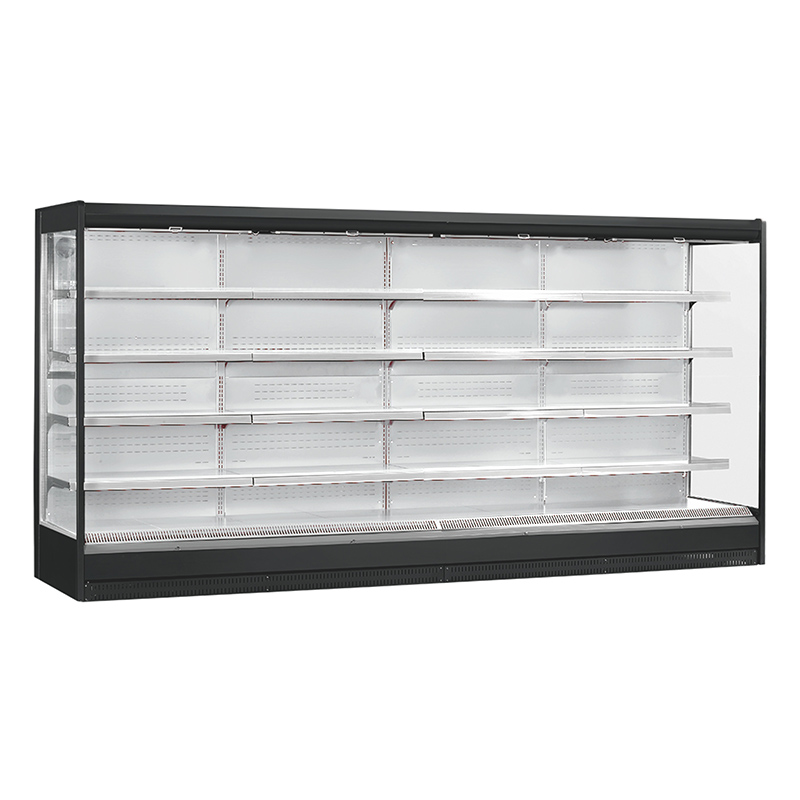

Open Showcase Series (870-1060) Remote Model

This refrigerated display cabinet is suitable for use in settings such as large supermarkets, supermarket convenience stores, and farmers' markets. It is designed to refrigerate and display items like beverages, milk, and alcoholic beverages.

This refrigerated display cabinet is suitable for use in settings such as large supermarkets, supermarket convenience stores, and farmers’ markets. It is designed to refrigerate and display items like beverages, milk, and alcoholic beverages.

Categories: Open Multi-Deck Chiller Series, Products, Remote Type, Supermarket Model

Interested in exploring how our products and services can benefit your business? Connect with our team today
—we're here to help you

Send Inquiry

Details

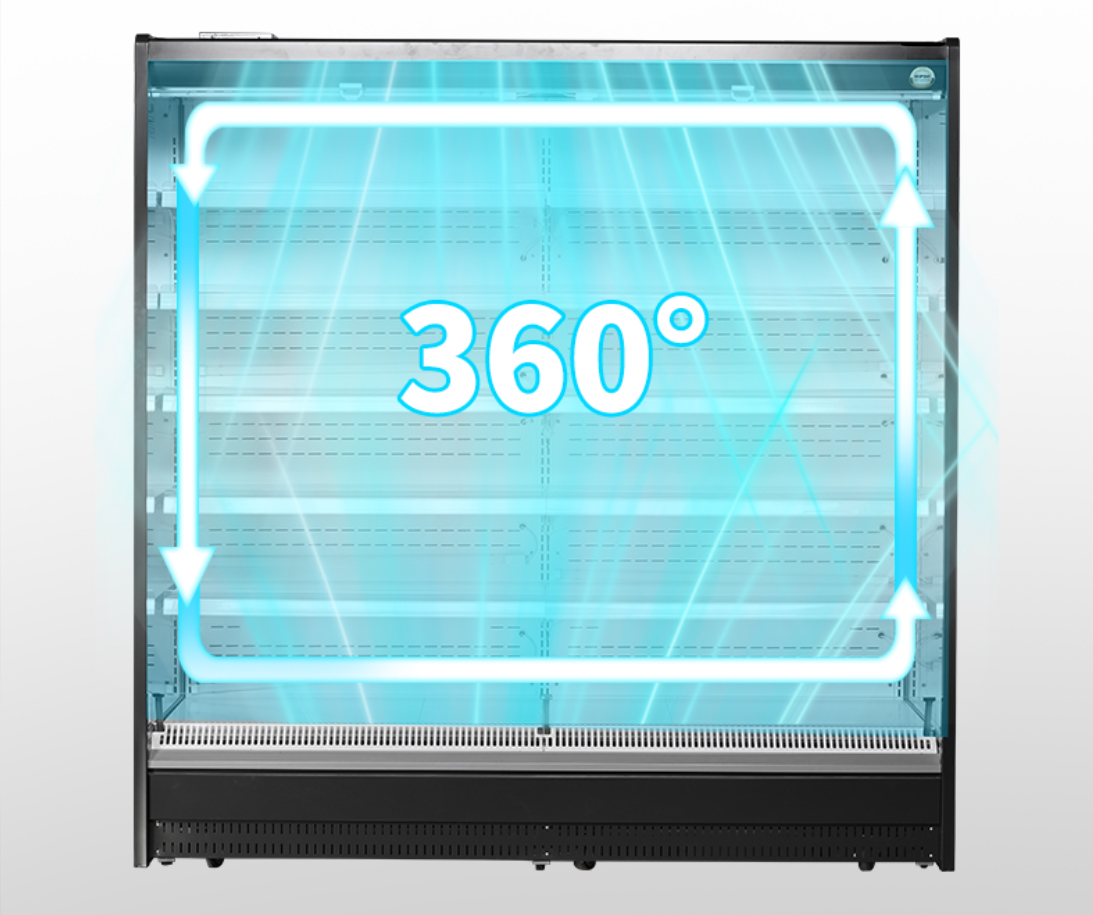

It adopts an air - cooled frost - free refrigeration method, which is energy - saving and quiet. The 360 - degree circulating cold air, combined with an enlarged high - efficiency refrigeration evaporation system, enables rapid cooling. The in - cabinet air - duct circulation technology and the open - type design facilitate customers' product selection.

The externally - installed unit helps to reduce equipment noise and indoor heat dissipation problems. Multiple units can be spliced together when used simultaneously, ensuring strong integrity.

Product Parameters

Model	XC-CLF-19/870	XC-CLF-25/870	XC-CLF-28/870	XC-CLF-38/870
Temperature Range(℃)	2~8	2~8	2~8	2~8
Capacity(L)	1237	1650	1856	2475
Power(W)	228	304	360	460
Net Weight(Kg)	300	430	500	650
Compressor	/	/	/	/
Refrigerant	R404a/R22	R404a/R22	R404a/R22	R404a/R22

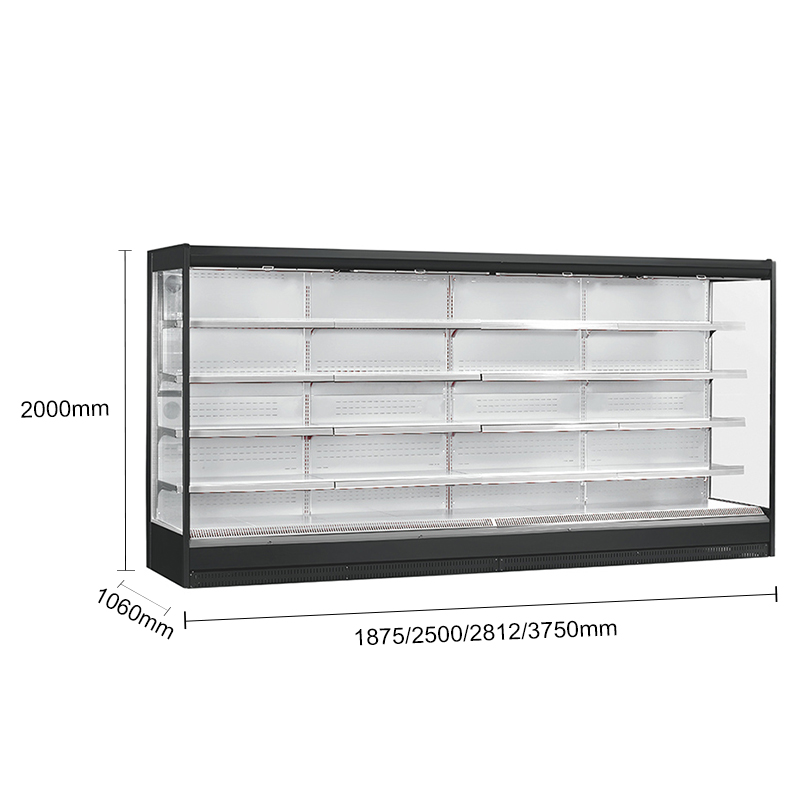

Dimension (mm)	18758702000	25008702000	28128702000	37508702000

Model	XC-CLF-19/1060	XC-CLF-25/1060	XC-CLF-28/1060	XC-CLF-38/1060
Temperature Range(℃)	2~8	2~8	2~8	2~8
Capacity(L)	1652	2205	2480	3307
Power(W)	260	340	350	460
Net Weight(Kg)	330	470	545	705
Compressor	/	/	/	/
Refrigerant	R404a/R22	R404a/R22	R404a/R22	R404a/R22
Dimension (mm)	187510602000	250010602000	281210602000	375010602000

Product Features

1. Branded compressor for stable and reliable performance.

2. Thickened insulation layer for improved cooling retention and energy savings.

3. Frost-free fan cooling delivers faster cooling and more even temperature inside.

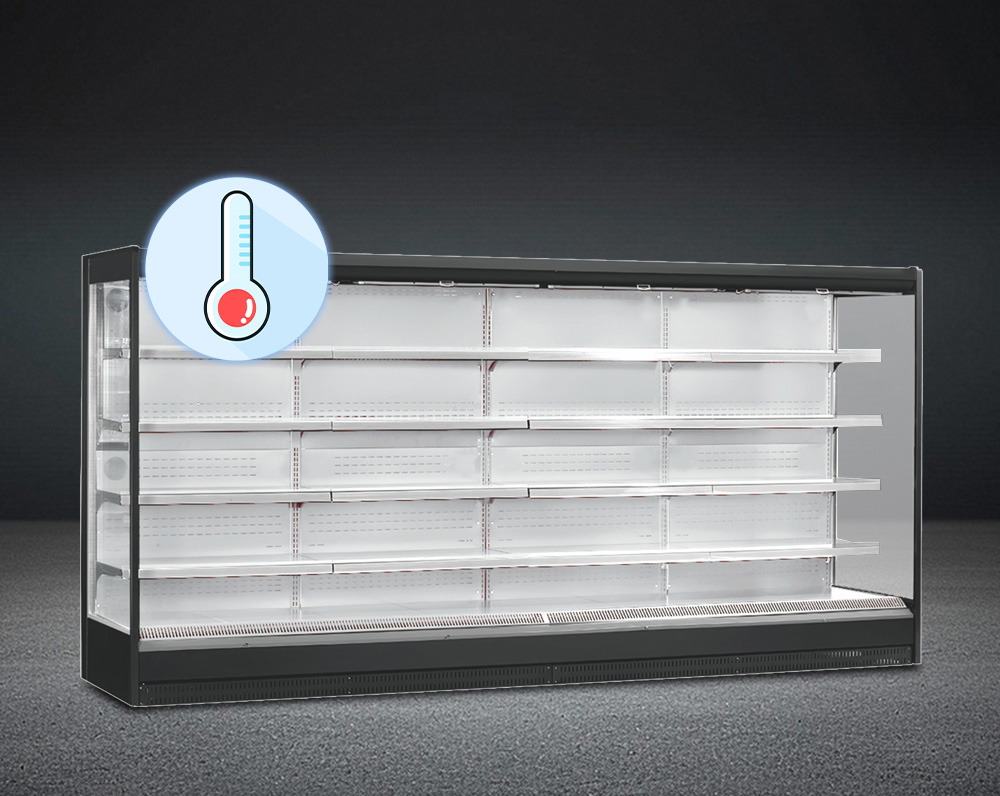

Open Showcase Series (870-1060) Remote Model (4)

4. Electronic controller with digital temperature display for easy and precise adjustment.

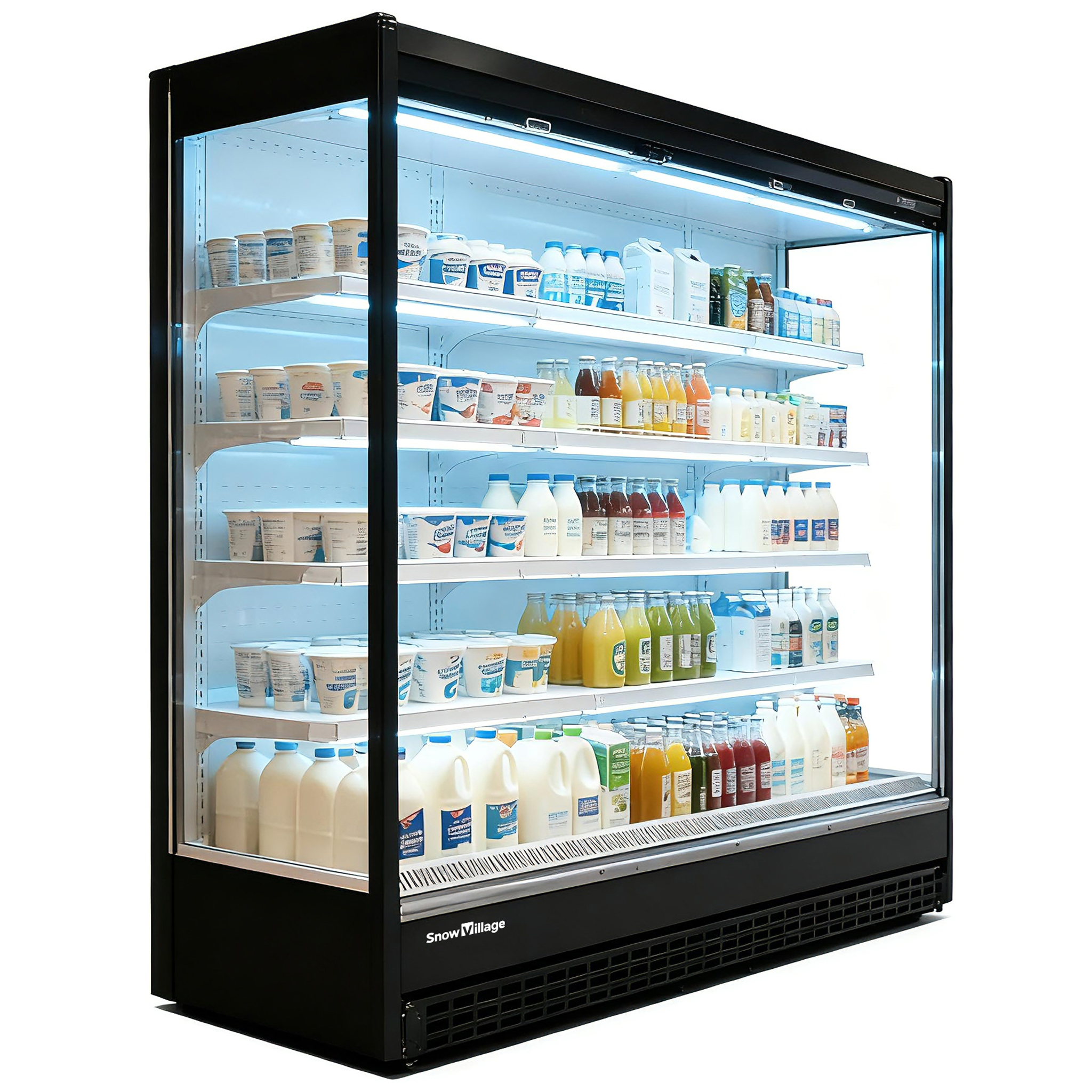

Open Showcase Series (870-1060) Remote Model (5)

5. Open-front design for easy product access and enhanced shopping convenience.

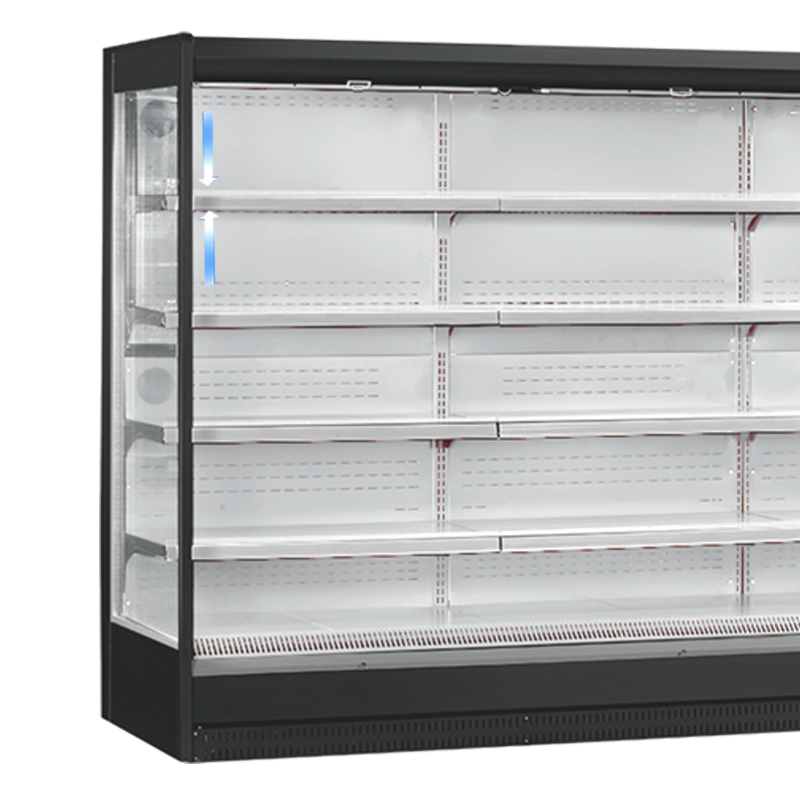

Open Showcase Series (870-1060) Remote Model (6)

6. Adjustable shelves for flexible storage and display.

Open Showcase Series (870-1060) Remote Model (7)

7. Available in various sizes to suit diverse store layouts and applications.

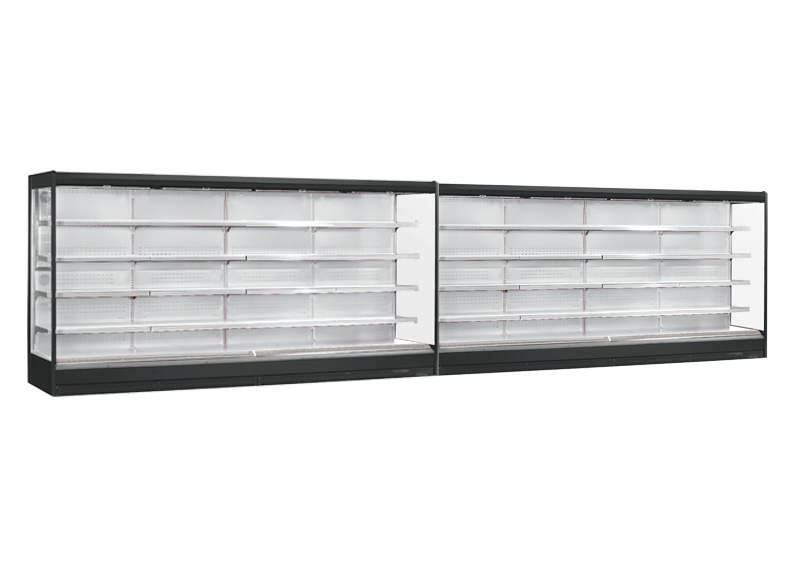

Open Showcase Series (870-1060) Remote Model (8)

8. Modular design allows multiple units to be seamlessly connected.

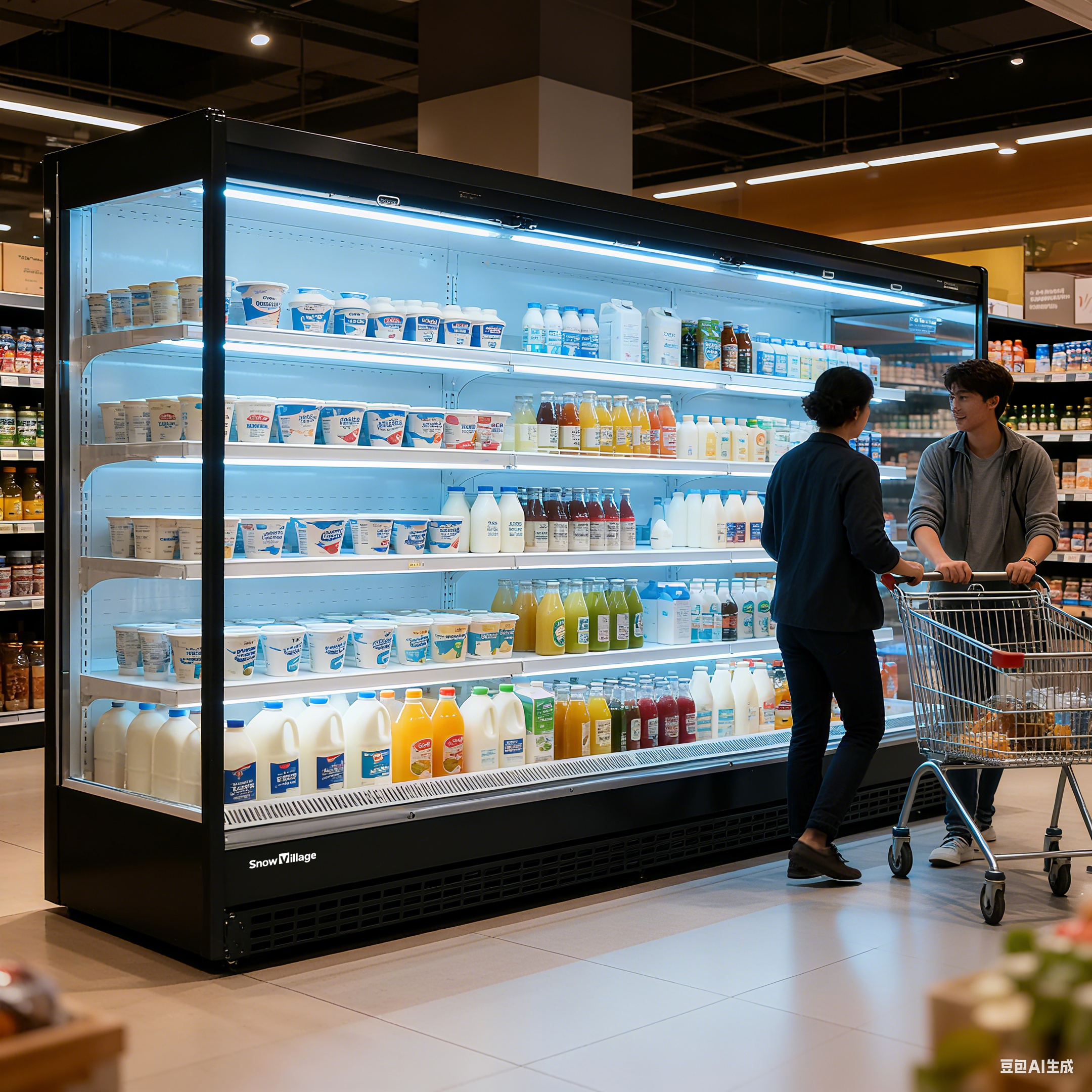

Open Showcase Series (870-1060) Remote Model (9)

9. Optional remote condensing unit reduces noise and minimizes indoor heat discharge.
