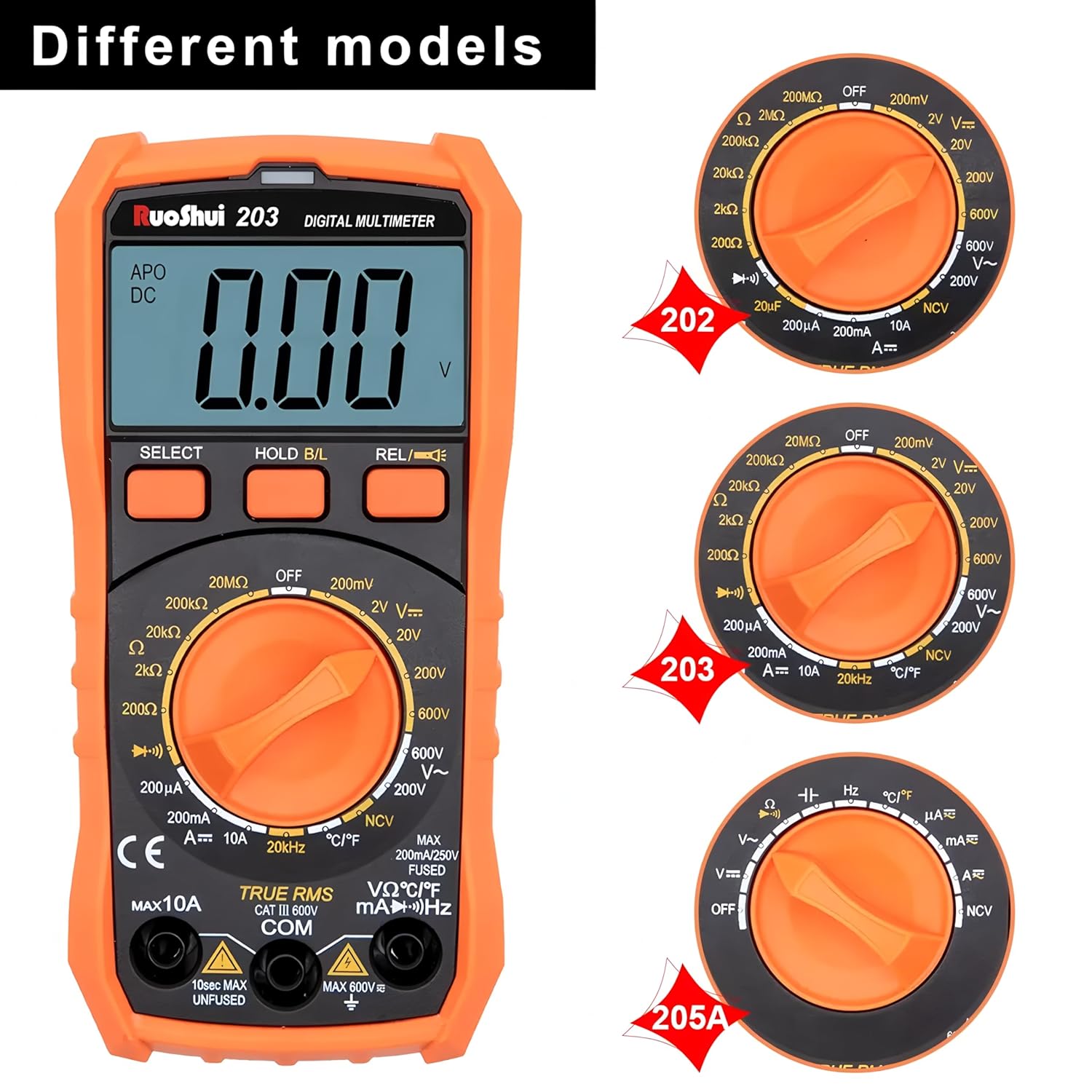

201/202/203/205A Digital Multi-meter AC/DC Voltage Current Resistance Digital Universal Meter Burn-proof Pocket Multi-meter(RUOSHUI 205A)
Product details
| Management number | 213673421 | Release Date | 2026/04/12 | List Price | $21.48 | Model Number | 213673421 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
RUOSHUI VC201/202/203 Digital Multi-meter AC/DC Voltage Current Resistance Digital Universal Meter Burn-proof Pocket Multi-meter 1.Description It is a handheld small and safe digital Multi-meter with 3 1/2 digits,full function and high performance for measuring DCV, ACV, DCA, resistance, temperature, frequency, diode, continuity test, thus it is a portable and ideal tool for users. Please read the safety information and warning in this manual carefully, and strictly abide by it. 2. OPEN THE PACKAGE Open the box, take out the meter, and then check the items below to make sure if they are missing or damaging: Manual 1pc Test lead 1pair Type-K thermocouple probe (-20℃~250℃) 1pc 1.5V AA A LR03 Battery 2pcs Holster 1pc 3. CHARACTERISTIC 3-1. Display : LCD displaying. 3-2. Max display: 1999(3 1/2 digit)auto polarity indication. 3-3. Measuring method: A/D conversion 3-4. Exploit the technology of button calibrating 3-5. Sampling rate: approx.3 times/second. 3-6. Over range indication: the MSD displays “OL” 3-7. Low battery indication 3-8. Operation environment: (0～40)℃ relative humidity <75% R.H 3-9. Storage environment:(-20～60)℃ relative humidity <85% R.H. 3-10. Power:2 * AAA 1.5V LR03 batteries 3-11. Size: (146*72*50) mm 3-12.Weight: approx. 232g(including batteries)
- Measure DCV, ACV, DCA, resistance, temperature, frequency, diode, continuity test
- LCD displaying, 1999(3 1/2 digit)auto polarity indication, Measuring method: A/D conversion
- Exploit the technology of button calibrating, Sampling rate: approx.
- 3 times/second, Over range indication,Measuring method: A/D conversion
- Exploit the technology of button calibrating, Sampling rate: approx.3 times/second.
| Color | Orange |
|---|---|
| Model | EO-RUOSHUI 205A |
| Brand Name | RuoShui |
| Style Name | Clamp Meter/Multimeter |
| Unit Count | 1.0 Count |
| Item Weight | 1 Kilograms |
| Manufacturer | Xi'an Beicheng Electronics Co.Ltd(RUOSHUI) |
| Power Source | Battery Powered |
| Item Dimensions | 7.87 x 5.91 x 7.09 inches |
| Specification Met | CE, RoHS, UL |
| Included Components | RUOSHUI 205A |
| Upper Temperature Rating | 60 Degrees Celsius |
| EU Spare Part Availability Duration | 1 Years |
