Vertical Channel Weld On Tongue Adapter for Trailer A-Frames - up to 20,000 lbs GTW, Components Only - 2 Sides, Base & Vertical Channel

The Trailer Tongue Vertical Channel mount adapter for your trailer a-frame is a weld on adapter that converts your typical horizontal trailer tongue to accept a vertical channel type coupler. This weld on vertical channel mount has 6 adjustment holes. The six bolt hole pattern works great with typical vertical channel trailer couplers. Available completely welded, spot welded or just the components. Perfect for modifying a trailer or when building a custom trailer. The outer front is 4" wide, the outer rear is 11.75" wide. From front to back it measures 7-1/2". Actual vertical channel is 3.7" OD / 2.9" ID x 12" Tall w/ 2" on center bolt pattern.Weight Rating: If you are using 2 bolts to attach trailer coupler then its 14,000 lbs if using 4 bolts then 20,000 lbs that also assumes this kit is properly welded onto the trailer and the coupler you are using can handle those respective capacities.Towing capacity is limited by lowest rated component. It also requires professional welding onto the trailer for the weight rating to be applicable.California Resident: Prop 65 Warning

• Upgrade Your Trailer to Having a Vertical Channel: This kit is Components Only - 2 sides, base & vertical channel. Made in the USA with Premium Grade Steel. From Shocker Hitch - Jamestown, ND

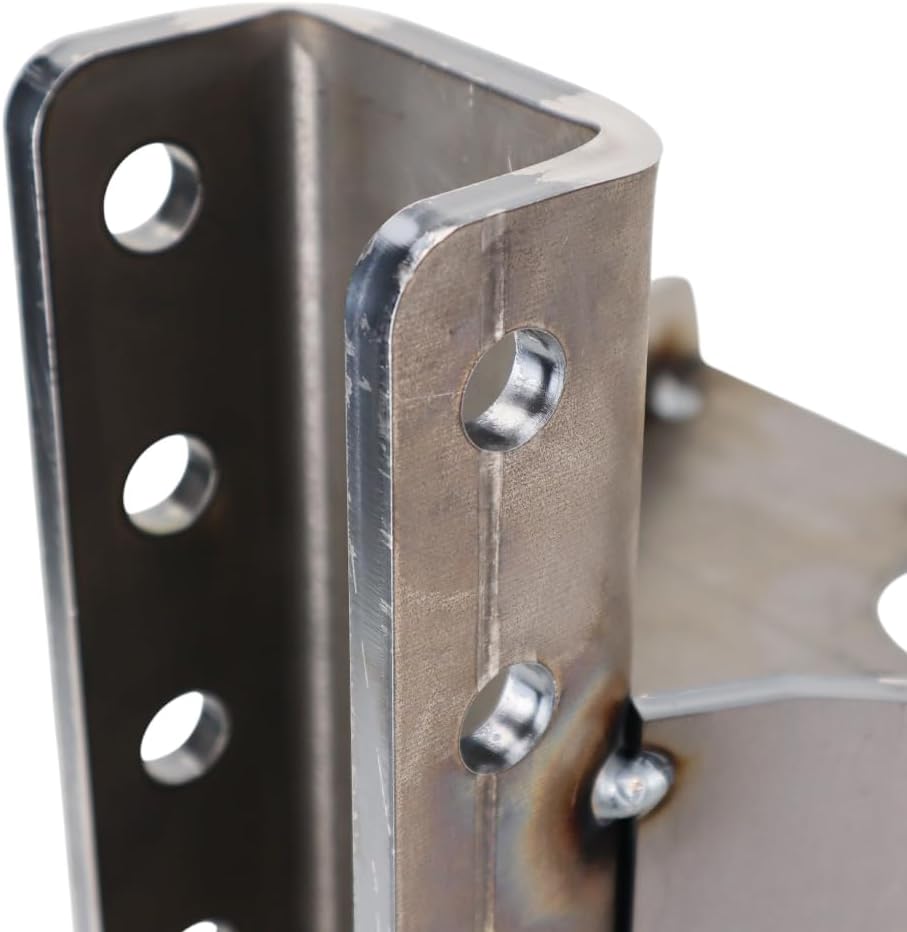

• Equipped with 6 Adjustment Holes. Raw Steel. The six bolt hole pattern works great with typical vertical channel bolt on trailer couplers or pintle rings. Actual vertical channel is 3.7" OD / 2.9" ID� x 12" Tall w/ 2" on center bolt pattern. Channel is HD 3/8" thick steel.
• The outer front is 4" wide, the outer rear is 11-3/4" wide. From front to back it measures 7-1/2". Weight Rating: If you are using 2 bolts to attach coupler then its 14,000 lbs if using 4 bolts then 20,000 lbs that also assumes this kit is properly welded onto the trailer and the coupler you are using can handle those respective capacities.

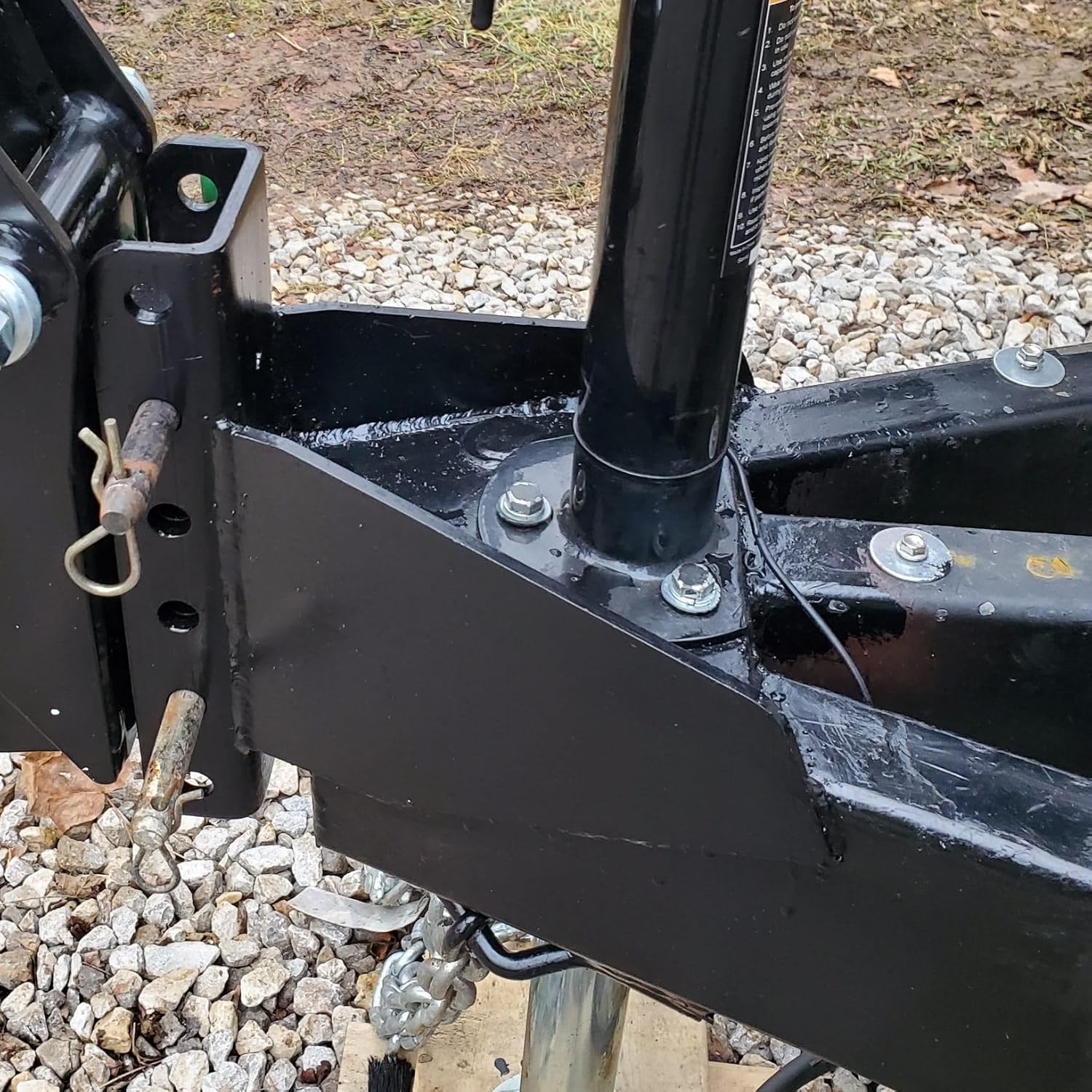

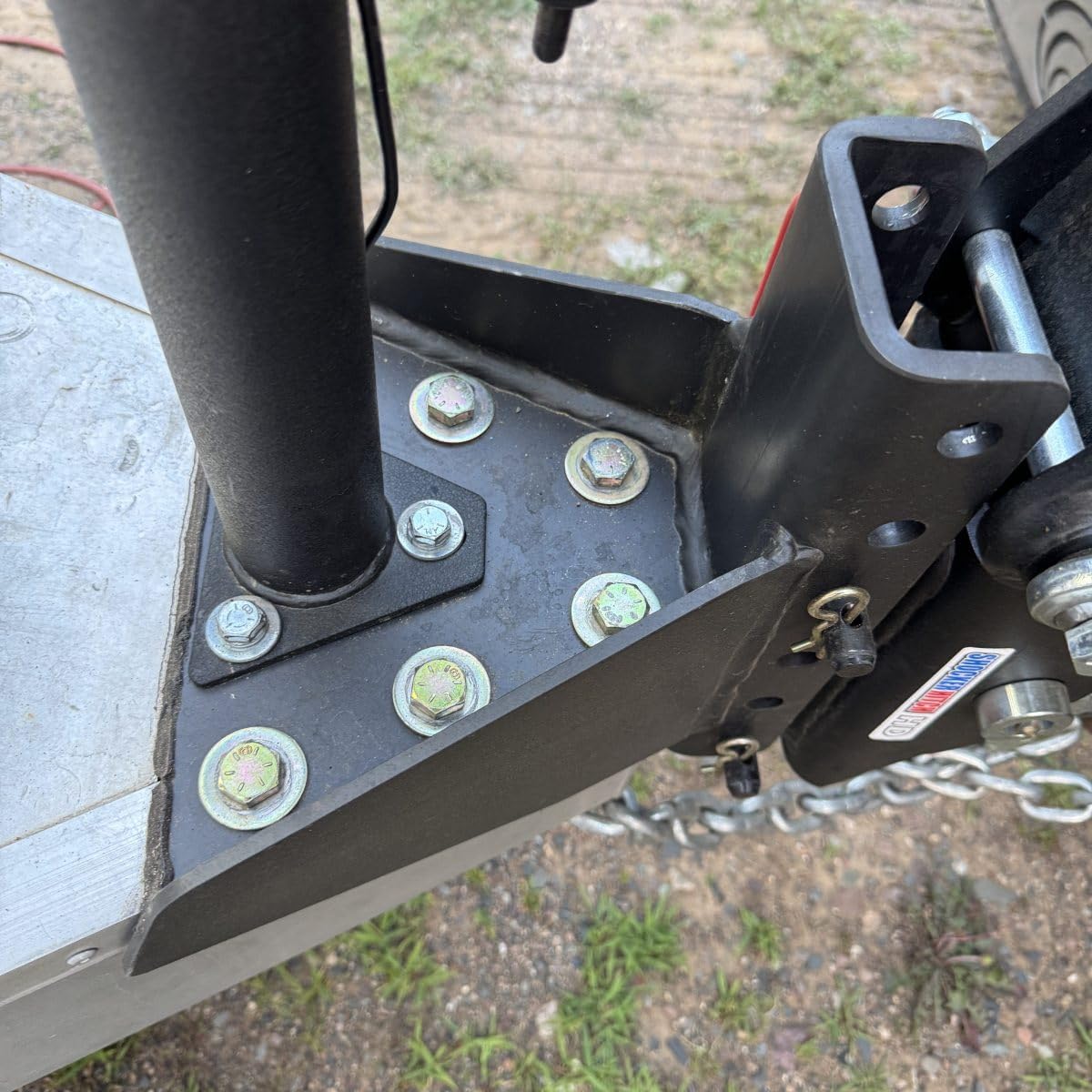

• Allows you to convert your trailer a-frame to one that accepts Vertical Channel couplers. Professional Welding required for install. This is heavy duty unit that in most cases exceeds factory tow weight capacities. It?s important you follow the tongue & tow weight recommendations of the truck it is mounted on, hitch, ball, coupler ratings & the ratings of trailer you're towing. Requires professional welding onto the trailer for the weight rating to be applicable.
• Trailer Tongue Vertical Channel Style Weld On Adapter for Trailer A-Frame. Trailer Tongue Vertical Channel Style Weld On Adapter for Trailer A-Frame.
